Advanced performance, maintenance testing is more convenient:

1. nozzle: nozzle automatic cleaning function to ensure stable operation of the machine can be a long, fully anatomical nozzle design, completely solve the persistent problem of nozzle clogging in the industry

2, nozzle: the perfect nozzle design, greatly improving performance and continuous high-speed switching machine printing stability

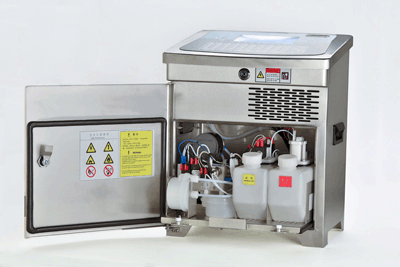

3. Overall: electrical systems and ink system is separated with the maintenance and avoid the use of accidental damage to the machine.

4. Ink: simple drawer intelligent ink system, ensure the stability of ink road running, greatly improving the ease of maintenance Ink

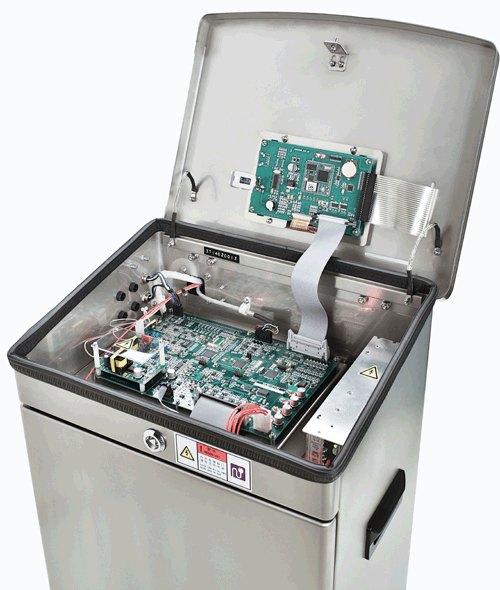

5, the circuit: integrated motherboard, reducing electrical fault caused due to aging connectors

6, the system: homemade operating system, greatly enhance boot speed, reducing the instability due to other operating system itself brings

7. Display: High resolution display and self-designed graphical user interface, user quickly reach the desired function, greatly enhance the operating time

8, print mode: Modular printing algorithm embedded technology, while ensuring optimum printing results and speed balance

9, sub-octave: any number of output pulses of the shaft encoder multiplier and divider, to obtain the best print results, solve synchronizer for election and by round match distress.

10. Auto Tracking: boot automatically find the best split point and real-time adjustment during operation, to better adapt to environmental changes, to ensure the stability of long continuous printing, printing achieve the best results.

11, manual testing: direct manipulation of individual ink system closes valves and pumps through the menu, the machine is easier to judge the failure to prevent unnecessary maintenance costs.

12, add the system: add ink system, which added that the use, without the need to replace the ink tank, saving supplies.





























.

CYCJET B Series inkjet printer description:

 Model: B3020

Main features: X Series small character inkjet printer can achieve the highest dot 32 dot matrix printing, Chinese-English user interface, electrical systems, ink systems, sprinklers, nozzles through innovative design, the inkjet printer to achieve a higher stability .



Product parameters:

● 1-6 line printing, offset function dot by dot, to achieve any preparation, editing and better meet customer needs

● 5x5 dot matrix printing speed of up to 345 m / min.

● Built-in over six thousand Chinese characters, Pinyin input directly

● Automatic counting and counting nesting

● The date and time automatically updated printing; continuous, the number of times to repeat the printing function; shift printing

● 5 × 5,5 × 7,7 × 9,12 × 16,18 × 24,12 × 12,16 × 16 bitmap fonts and other printing

● Long print information editing, greater production to meet customer needs

● printing parameters and content integrated storage products more convenient for users to call, ready to use, reducing time wasted editorial adjustments, higher and improve work efficiency.

● pattern can be used directly via USB to import computer editing, information, graphics, fonts or export

● Mass storage, printing long message, a huge amount of information storage, unlimited use of USB storage expansion

● Ultra-flexible custom font capabilities, which can be tailored to the special requirements of customers dedicated print fonts, print mode, improve security anti-changing feature.

● have a bar code (128 yards), two-dimensional code printing, computer on-line printing and other extensions

● Machine LCD panel LED lamp, Windows text-based direct real-time status display inkjet printer, easy to observe the workshop, but also can increase the warning lamp function upon request
