Fiber Fly Laser Marking Machine CYCJET LF30F
Color touch screen;
High-quality
International Approval;
IPG Laser device;
High speed Marking max 450m/min;
Features
Specifications
Videos

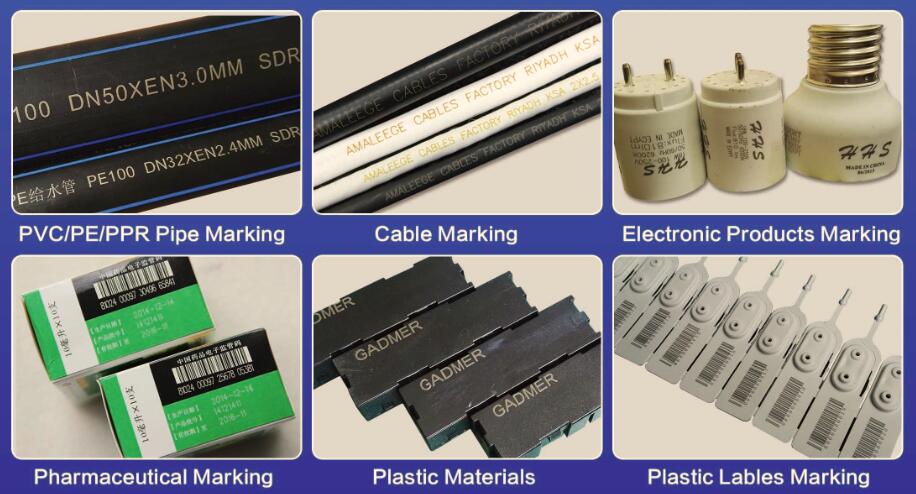

CYCJET LF series Fly laser printer used independent research and development of fiber lasers by our company, with a higher cost performance. The most advanced polarized lens system to ensure superior quality and high speed marking output. The entire laser system integrates a color touch screen controller, induction electric part, encoder and lift bracket. Sophisticated and compact designed, it can be easily installed in tight spaces. Mainly used high-speed multi-coding of electronic contents, motors, pipes & cable, metal...
Laser Machine Features
Frame Material
Complete Alum
Laser Device
Fiber Laser
Power
≥30W
Laser Wavelength
1064nm
Galvanometer Deflection
High Position Dual Dimension Scannning System
Marking Speed
≤12000mm/s
Master Control
High Intergrated Board with 10 Inch Color Touch Screen
Operation System
LINUX
Cooling
Air Cooling(6pcs cooling fans)
Marking Specifications
Focus
180mm
Marking Line Type
Dot Matrix, Bold, Vector all in one(both dot & matrix and vector)
Minimum Line Width
0.012mm
Repeatablity Accurate Positioning
0.003mm
Marking Area
Standard 110mm*110mm(Customized Available)
Marking Height
110mm
Marking Length
Unlimited
Position Mode
Focusing
Number Of Characters
Multi-Line within marking size
Line Speed
Standard 0-120m/min (Depends on material)
Support Type
Typeface
Chinese, English, Arabic, Spanish Font Library
Marking
Number, Logo, Image, Letter, Serial No, System Date & Time Etc.
